Cronus Zen Xbox Series X|S and Xbox One Setup
Connect Cronus Zen to Xbox Series X|S or Xbox One with the correct rear-port wiring and A1 controller connection.
Xbox connection overview
Xbox uses a direct wired Cronus Zen connection and does not require the PS5 bypass process. The Xbox controller provides the expected controller connection through A1.

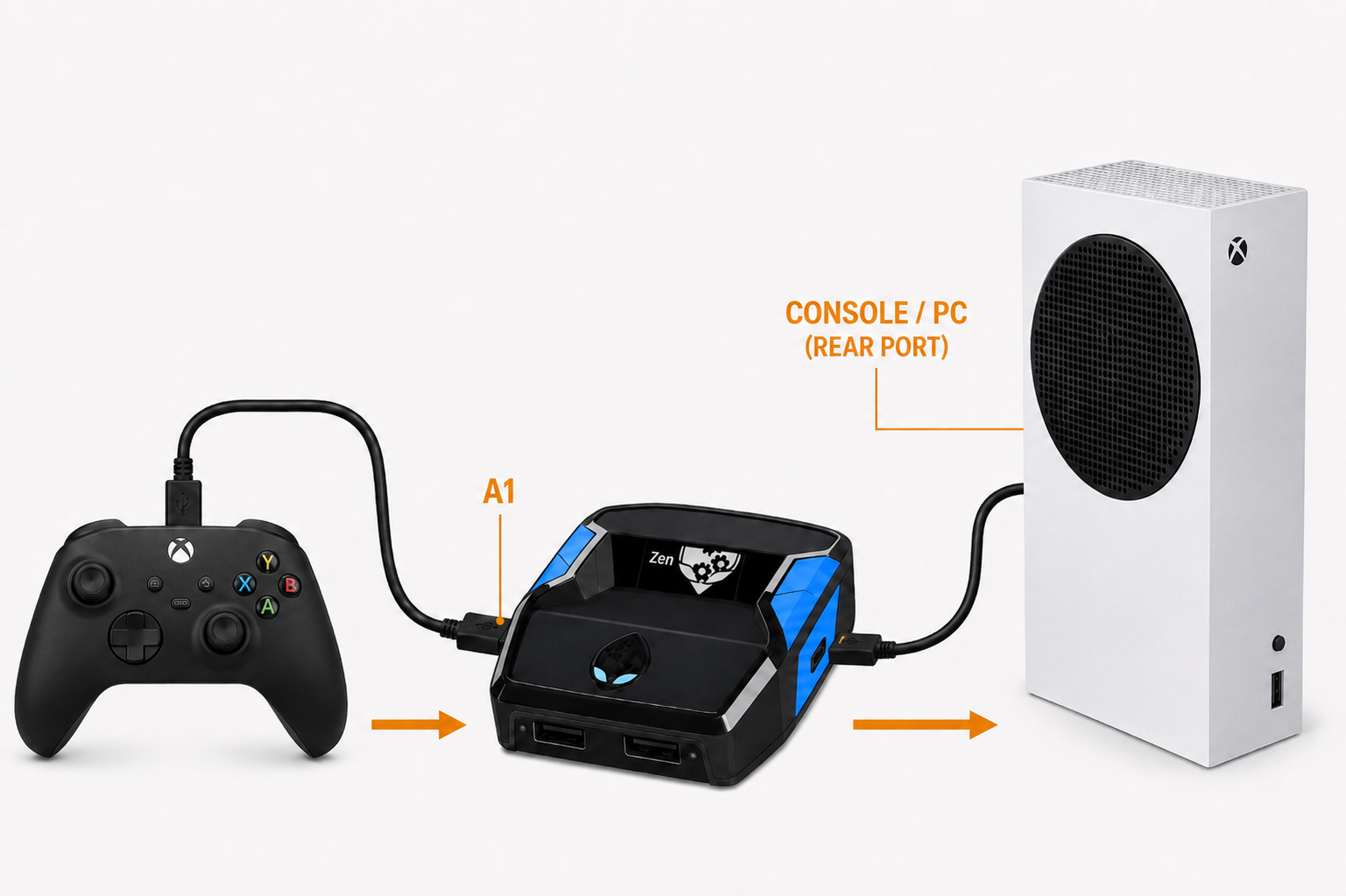

Connect Cronus Zen to Xbox
- Disconnect the right-side PROG cable before starting gameplay setup.
- Connect the short USB-C cable from the rear CONSOLE/PC port of the Zen directly to the Xbox.
- Connect the Xbox controller to A1 with a reliable data-sync USB cable.
- Press the Xbox button and wait for the controller and Zen to finish connecting.
- Test normal controller input before enabling a script.
Xbox headset troubleshooting
If a headset connected through the Xbox controller does not work, first confirm the controller and headset function when connected directly to the console.
The supplied connection guidance recommends firmware 2.0.9-beta.43 for the known Xbox headset issue. Read the firmware guide before changing versions and only downgrade when the headset problem requires it.
FAQ
Does Cronus Zen need a bypass on Xbox?
No. Xbox uses a direct wired connection through the Zen's rear CONSOLE/PC port.
Which Zen port should the Xbox controller use?
Connect the main Xbox controller to A1 with a data-capable USB cable.
